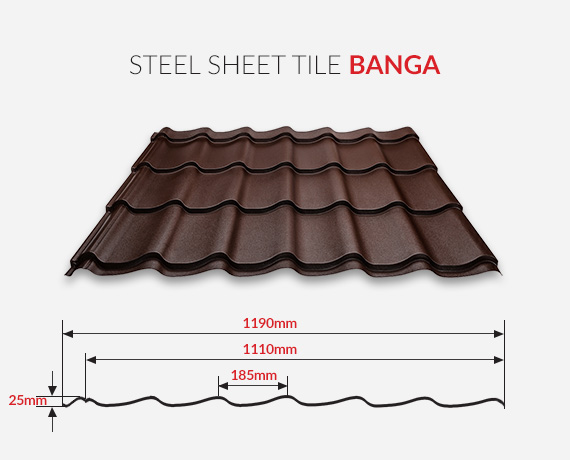

total width 1190mm
width of factual covering 1110mm
rib height of steel sheet tile’s offset 20mm
profile height 25mm
a roof tile module length 350mm
minimum sheet length 850mm
maximum sheet length 6000mm
sheet metal thickness 0,5mm
spacing of trapezoidal waves 185mm

Burden material

Standard polyester/shine thickness 0,5/0,7

Coating class:

The oldest and very popular organic coating of 25 µm, galvanized 275 g/m2. The surface is smooth, uniform with a specific gloss. It is mostly used in house building and industrial building on roofs and elevations. Available in many colours from the RAL palette. Due to a wide selection of colours and affordable price it is very popular.

Warranty period for 10 years.

Description
Sheet metal thickness 0,5; 0,7
Coating thickness Surface coating:25 microns
Lower coating:7 microns
Operational properties
Category of resistance to corrosion RC3
Category of resistance to ultraviolet radiation RUV2
Finishing Smooth
Resistance to cracking while crushing <= 3 T
Resistance to scratching (Clemen) >= 2 kg
Fire-resistance classification A1

RAL 8017

RAL 8019

RAL 7016

RAL 7024

RAL 6005

RAL 6020

RAL 8004

RAL 3011

RAL 3005

RAL 3009

RAL 3000

RAL 5010

RAL 9010

RAL 9002

RAL 9006

Polyester mat

Coating class:

Improved version of standard polyester. Thickness of organic coating is 35 µm, galvanization minimum 275 g/m2. The coating is almost without any gloss and is described as coarse grained mat. The surface is slightly rough, porous. Due to such a surface, it resembles a roof tile from a distance. The polyester mat surface is very elastic with high anticorrosion characteristics and is resistant to discolouration caused by sunlight. It is highly respected in housing.

Warranty period for 15 years.

Description
Sheet metal thickness 0,5
Coating thickness Surface coating:35 microns
Lower coating:7 microns
Operational properties
Category of resistance to corrosion RC3
Category of resistance to ultraviolet radiation RUV3
Finishing Mat
Resistance to cracking while crushing <= 2 T
Resistance to scratching (Clemen) >= 1,5 kg
Fire-resistance classification F

RAL 8017

RAL 8019

RAL 8004

RAL 3009

RAL 6020

RAL 7024

RAL 7016

RAL 9005

SHIMOCO

Coating class:

Modern and very durable polyester coating. Thickness of organic coating to 80 µm, galvanization Z 275 g/m2. The surface has got a uniform pattern structure (with preserving aesthetic of grain) which beautifully reflects light. The SHIMOCO system formula guarantees best protection against UV and corrosion. It provides maximum flexibility and durability. The highest quality resistance to scratching and grinding. The coating fabricated by Italian concern MARCEGAGLIA.

SHIMOCO is an amazing choice. High quality goes along with reasonable price. The product may be used both in housing and industrial constructions.

Warranty period up to 30 years.

Description
Sheet metal thickness 0,5
Coating thickness Surface coating:to 80 microns
Lower coating:7 microns
Operational properties
Category of resistance to corrosion RC5
Category of resistance to ultraviolet radiation RUV4
Finishing Uniform structure pattern (aesthetic value)
Resistance to cracking while crushing < 2 T
Resistance to scratching (Clemen) >= 2 kg
Fire-resistance classification F

RAL 3005

RAL 3009

RAL 3011

RAL 6020

RAL 7016

RAL 8004

RAL 8017

RAL 8019

RAL 9005

Colorcoat HPS200 Ultra®

Coating class:

A kind of a thick-film coating of a squeezed structure, similar to an orange peel. Thickness of organic coating is as much as 200 µm. Its characteristic features are perfect resistance to rubbing, mechanical damages, sunlight, discolouration and loss of gloss. The base material is tested and used solely in TATA Steel company sheet metal covered with a unique metallic coating Galvalloy® that is an alloy of zinc (95%) and aluminium (5%). The metallic coating Galvalloy® is distinctive by much lower risk of losing performance due to corrosion and edge peeling, which save costs and reassures its users. Products made out of the coated steel Colorcoat HPS200 Ultra® provide special utility parameters and resistance to corrosion in various usages as metal coverings of walls and roofs. This is the reason why they are applied in the most demanding internal conditions, like swimming pools, sewage treatment plants, power stations, processing plants gaining power from waste and processing plants.

Warranty period for 40 lat.

Description
Sheet metal thickness 0,5
Coating thickness Surface coating:200 microns
Lower coating:7 microns
Operational properties
Category of resistance to corrosion RC5
Category of resistance to ultraviolet radiation RUV4
Finishing Unique texture Scintilla®
Resistance to cracking while crushing 0T (16°C)
1T (0°C)
Resistance to scratching (Clemen) >= 5 kg
Fire-resistance classification C-s2, d0

RAL 3005

RAL 8014

RAL 7016

RAL 6020

RAL 8004

RAL 9002

Granite® HDX

Coating class:

A kind of organic polyurethane coating with polyamide granules. Thickness of the surface organic coating is 55 µm, galvanization 275 g/m2. The parameters make the product very durable and resistant to any external conditions, like weather conditions or mechanical damage. The surface is slightly rough, grainy. Metal sheet’s producer is a steelwork concern ArcelorMittal, and due to a multi-year experience in the production of lots of coated steels, in terms of technology and aesthetics, Granite® HDX is the best product from the Granite® series. It is a perfect solution intended for use in aggressive and demanding environments:

  • cold and moist environment
  • coastal areas (to 20km from the shoreline)
  • sunlit areas of high level of UV radiation
  • industrial an polluted areas

Granite® HDX is a perfect solution for a demanding customer. It may be used both in housing and industrial building. Moreover, the product may be used for casing air conditioning , heating and ventilation systems.

Warranty period for 30 years.

Description
Sheet metal thickness 0,5; 0,7
Coating thickness Surface coating:55 microns
Lower coating:7 microns
Operational properties
Category of resistance to corrosion RC5
Category of resistance to ultraviolet radiation RUV4
Finishing Coating with a granular structure
Resistance to cracking while crushing <= 1,5 T
Resistance to scratching (Clemen) >= 3 kg
Fire-resistance classification F

RAL 8017

RAL 7016

Sheet material structure

Realizations
