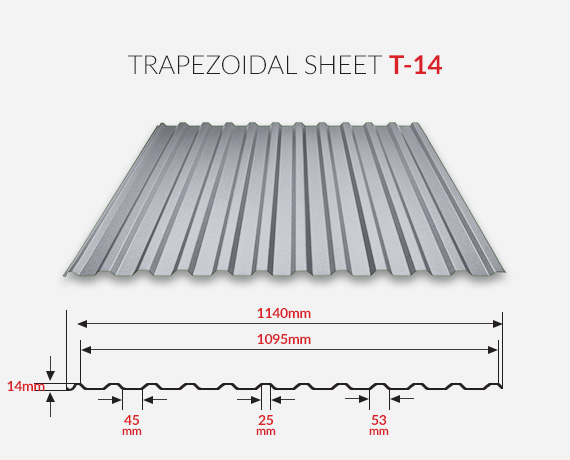

total width | 1140mm |
width of factual covering | 1095mm |
profile height | 14mm |
minimum sheet length | to 8mb |
sheet metal thickness | 0,5mm – 0,75mm |
Burden material
Standard polyester/shine thickness 0,5/0,7
Coating class:
The oldest and very popular organic coating of 25 µm, galvanized 275 g/m2. The surface is smooth, uniform with a specific gloss. It is mostly used in house building and industrial building on roofs and elevations. Available in many colours from the RAL palette. Due to a wide selection of colours and affordable price it is very popular.
Warranty period for 10 years.
Sheet metal thickness | 0,5; 0,7 |
Coating thickness | Surface coating:25 microns Lower coating:7 microns |
Category of resistance to corrosion | RC3 |
Category of resistance to ultraviolet radiation | RUV2 |
Finishing | Smooth |
Resistance to cracking while crushing | <= 3 T |
Resistance to scratching (Clemen) | >= 2 kg |
Fire-resistance classification | A1 |
RAL 8017
RAL 8019
RAL 7016
RAL 7024
RAL 6005
RAL 6020
RAL 8004
RAL 3011
RAL 3005
RAL 3009
RAL 3000
RAL 5010
RAL 9010
RAL 9002
RAL 9006
Polyester mat
Coating class:
Improved version of standard polyester. Thickness of organic coating is 35 µm, galvanization minimum 275 g/m2. The coating is almost without any gloss and is described as coarse grained mat. The surface is slightly rough, porous. Due to such a surface, it resembles a roof tile from a distance. The polyester mat surface is very elastic with high anticorrosion characteristics and is resistant to discolouration caused by sunlight. It is highly respected in housing.
Warranty period for 15 years.
Sheet metal thickness | 0,5 |
Coating thickness | Surface coating:35 microns Lower coating:7 microns |
Category of resistance to corrosion | RC3 |
Category of resistance to ultraviolet radiation | RUV3 |
Finishing | Mat |
Resistance to cracking while crushing | <= 2 T |
Resistance to scratching (Clemen) | >= 1,5 kg |
Fire-resistance classification | F |
RAL 8017
RAL 8019
RAL 8004
RAL 3009
RAL 6020
RAL 7024
RAL 7016
RAL 9005
SHIMOCO
Coating class:
Modern and very durable polyester coating. Thickness of organic coating is 80 µm, galvanization Z 275 g/m2. The surface has got a uniform pattern structure (with preserving aesthetic of grain) which beautifully reflects light. The SHIMOCO system formula guarantees best protection against UV and corrosion. It provides maximum flexibility and durability. The highest quality resistance to scratching and grinding. The coating fabricated by Italian concern MARCEGAGLIA.
SHIMOCO is an amazing choice. High quality goes along with reasonable price. The product may be used both in housing and industrial constructions.
Warranty period up to 30 years.
Sheet metal thickness | 0,5 |
Coating thickness | Surface coating:80 microns Lower coating:7 microns |
Category of resistance to corrosion | RC5 |
Category of resistance to ultraviolet radiation | RUV4 |
Finishing | Uniform structure pattern (aesthetic value) |
Resistance to cracking while crushing | < 2 T |
Resistance to scratching (Clemen) | >= 2 kg |
Fire-resistance classification | F |
RAL 3005
RAL 3009
RAL 3011
RAL 6020
RAL 7016
RAL 8004
RAL 8017
RAL 8019
RAL 9005
Colorcoat HPS200 Ultra®
Coating class:
A kind of a thick-film coating of a squeezed structure, similar to an orange peel. Thickness of organic coating is as much as 200 µm. Its characteristic features are perfect resistance to rubbing, mechanical damages, sunlight, discolouration and loss of gloss. The base material is tested and used solely in TATA Steel company sheet metal covered with a unique metallic coating Galvalloy® that is an alloy of zinc (95%) and aluminium (5%). The metallic coating Galvalloy® is distinctive by much lower risk of losing performance due to corrosion and edge peeling, which save costs and reassures its users. Products made out of the coated steel Colorcoat HPS200 Ultra® provide special utility parameters and resistance to corrosion in various usages as metal coverings of walls and roofs. This is the reason why they are applied in the most demanding internal conditions, like swimming pools, sewage treatment plants, power stations, processing plants gaining power from waste and processing plants.
Warranty period for 40 lat.
Sheet metal thickness | 0,5 |
Coating thickness | Surface coating:200 microns Lower coating:7 microns |
Category of resistance to corrosion | RC5 |
Category of resistance to ultraviolet radiation | RUV4 |
Finishing | Unique texture Scintilla® |
Resistance to cracking while crushing | 0T (16°C) 1T (0°C) |
Resistance to scratching (Clemen) | >= 5 kg |
Fire-resistance classification | C-s2, d0 |
RAL 3005
RAL 8014
RAL 7016
RAL 6020
RAL 8004
RAL 9002
Granite® HDX
Coating class:
A kind of organic polyurethane coating with polyamide granules. Thickness of the surface organic coating is 55 µm, galvanization 275 g/m2. The parameters make the product very durable and resistant to any external conditions, like weather conditions or mechanical damage. The surface is slightly rough, grainy. Metal sheet’s producer is a steelwork concern ArcelorMittal, and due to a multi-year experience in the production of lots of coated steels, in terms of technology and aesthetics, Granite® HDX is the best product from the Granite® series. It is a perfect solution intended for use in aggressive and demanding environments:
- cold and moist environment
- coastal areas (to 20km from the shoreline)
- sunlit areas of high level of UV radiation
- industrial an polluted areas
Granite® HDX is a perfect solution for a demanding customer. It may be used both in housing and industrial building. Moreover, the product may be used for casing air conditioning , heating and ventilation systems.
Warranty period for 30 years.
Sheet metal thickness | 0,5; 0,7 |
Coating thickness | Surface coating:55 microns Lower coating:7 microns |
Category of resistance to corrosion | RC5 |
Category of resistance to ultraviolet radiation | RUV4 |
Finishing | Coating with a granular structure |
Resistance to cracking while crushing | <= 1,5 T |
Resistance to scratching (Clemen) | >= 3 kg |
Fire-resistance classification | F |
RAL 8017
RAL 7016
Sheet material structure
